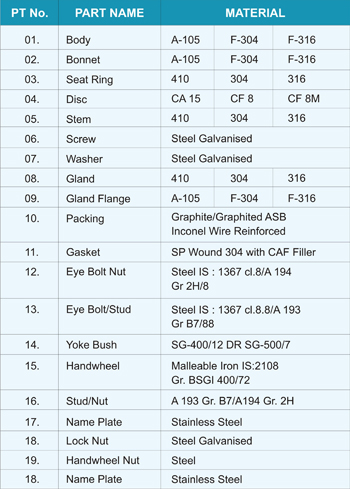

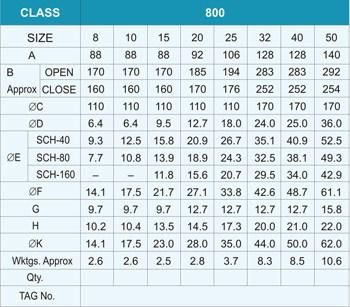

| FORGED STEEL GLOBE VALVES ARE AVAILABLE IN VARIOUS RANGES |
 |
|
 |
| |
|
|
| NOTES :- |
| |
| 1. Dimension 'A' as per manufacturers Std. |
| 2. Socket weld ends to ANSI.B16. 11 SCH 40/80/160 |
3. Screwed ends to BSP
BSPT NPT:ANSI
B1.20.1 |
 |
BS:21/IS:554 |
|
| 4. Butt weld ends to Ansi B 16.25, SCH. 40 / 80 / 160 |
| 5. Test pressure for IBR Valves shall be as per IBR requirements |
| 6. All dimen sion are in mm |
| 7. Port diameter in sizes 40 & 50 mm are slightly less than BS : 5352 |
|
|
 |
|
| |
|
|
|
